About EMI (Electromagnetic Interference)
EMI occurs when electronic devices like direct drive bases create disruptive signals that can affect the performance of other nearby devices, leading to issues like distorted signals, noise, and reduced functionality.
How to determine if EMI is affecting your GSI wheel
Perform a test by holding the wheel in your hands while it's connected to your powered USB hub, which is then connected to your computer. Ensure that the wheel doesn't touch any metal parts on your rig. If the wheel's functionality returns to normal, this indicates the presence of EMI. In such cases, grounding your sim rig is necessary to mitigate the issue.


EMI Test Example
  1. DD Base
  2. Wheel in hands only, not touching rig.

Grounding helps with EMI because it provides a safe and efficient path for unwanted electromagnetic energy to escape. When devices are grounded, any extra or unwanted electrical charges that build up can flow harmlessly into the ground. This prevents these charges from interfering with other devices or causing disruptions in their signals. Essentially, grounding acts as a way to drain away any excess energy and keep everything running smoothly without interference.

Grounding your rig with a suitable ground wire is the easiest way to eliminate the unwanted interference. Usually, the best method is to ground your sim rig from a metal point on your direct drive base to a metal point on your PC. Below are some pictures to help illustrate this method.

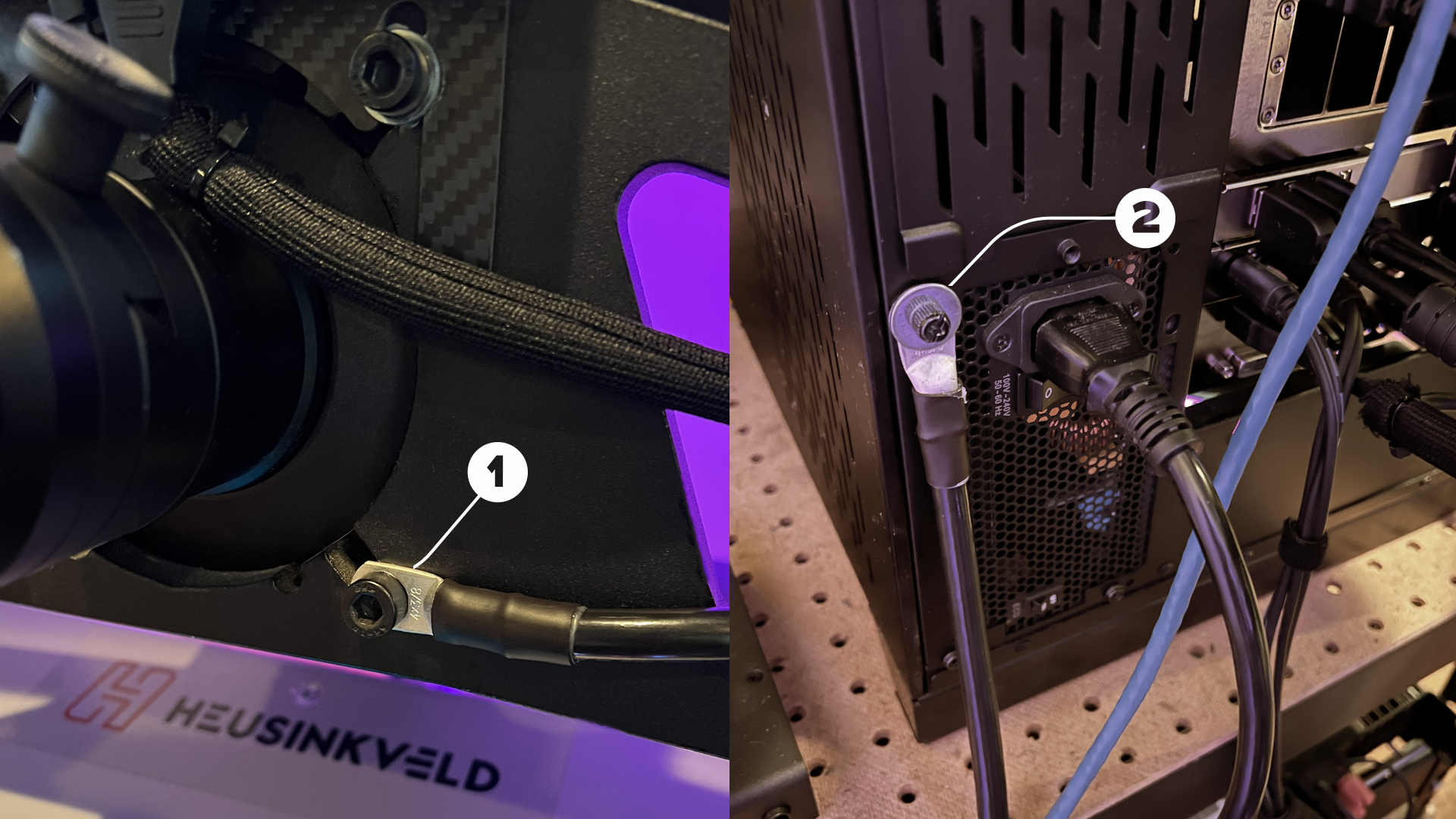

Fanatec Example
  1. Wheelbase grounding wire
  2. PC grounding wire


Simucube Example
  1. Wheelbase grounding wire
  2. PC grounding wire

Materials Needed:
  1. Grounding Wire (usually a copper wire with a metal clip on each end)
  2. Screwdriver (for removing wheelbase screw and accessing PC internals if needed)

How to Install Grounding Wire

  1. Prepare the Grounding Wire:
    Ensure the PC and all its components are turned off and disconnected from power sources.
    Take the grounding wire and make sure it's long enough to reach from a metal point on your PC to a suitable grounding source, like a metal part of your direct drive base.

  2. Identify Grounding Points:
    Look at your PC case for a metal part, like a screw or metal frame, that you can attach the grounding wire to.
    Identify a nearby grounding point on your direct drive base as well, such as a metal bracket or frame.

  3. Attach the Grounding Wire:
    On the PC side, attach one end of the grounding wire securely to the chosen metal grounding point. This could involve looping the wire around a screw or clipping it onto a metal part.
    On the direct drive base side, attach the other end of the grounding wire to the chosen grounding point in a similar manner.

  4. Secure the Connections:
    Make sure both ends of the grounding wire are securely attached to the metal points. If using clips, ensure they're firmly connected.

  5. Check the Connections:
    Double-check that both ends of the grounding wire are properly connected and won't come loose easily.

  6. Reassemble if Necessary:
    If you needed to open your PC case to access internal parts for grounding, carefully reassemble the case, ensuring all components are properly seated and connected.

  7. Power Up and Test:
    Power on your PC and any related devices.
    Observe if there's any reduction in interference or disruption. If done correctly, grounding should help alleviate EMI-related issues.
Note: If you're not comfortable working inside your PC case or connecting grounding wires, it's a good idea to consult your PC's user manual or seek assistance from someone with experience.

Remember, grounding can be quite effective in reducing electromagnetic interference, but it's important to handle all components safely and ensure that the grounding wire is properly connected to avoid any potential hazards.

Helpful Products:
  1. Grounding Wire via Amazon
